BTH Andromeda Pottery Wheel
New Generation Direct Drive Pottery Wheel
NZ$2875.00
The Andromeda Pottery wheel is a quiet, compact powerhouse produced by BTH in Jingdezhen. The Andromeda model is a smooth and powerful state-of-the-art, magnetically driven potter's wheel with a 5 year warranty.
Highlighted Performance
A) Stable Power
· Continuous, uniform torque across 3–300 RPM
B) Wide Speed Range
· 3 RPM for delicate, low-speed work (e.g., plate edges)
· 300 RPM for efficient trimming without residual lines
C) High-Precision Disc
· Aluminum disc exceeds industry standards:
Upper plane runout ≤ 0.1 mm
Side runout ≤ 0.05 mm
· Ensures accurate shaping and trimming
D) Magnetic Splash Pan
· Easy to remove and clean
E) Ultra-Quiet Operation
· Noise ≤ 40 dB even at high speed

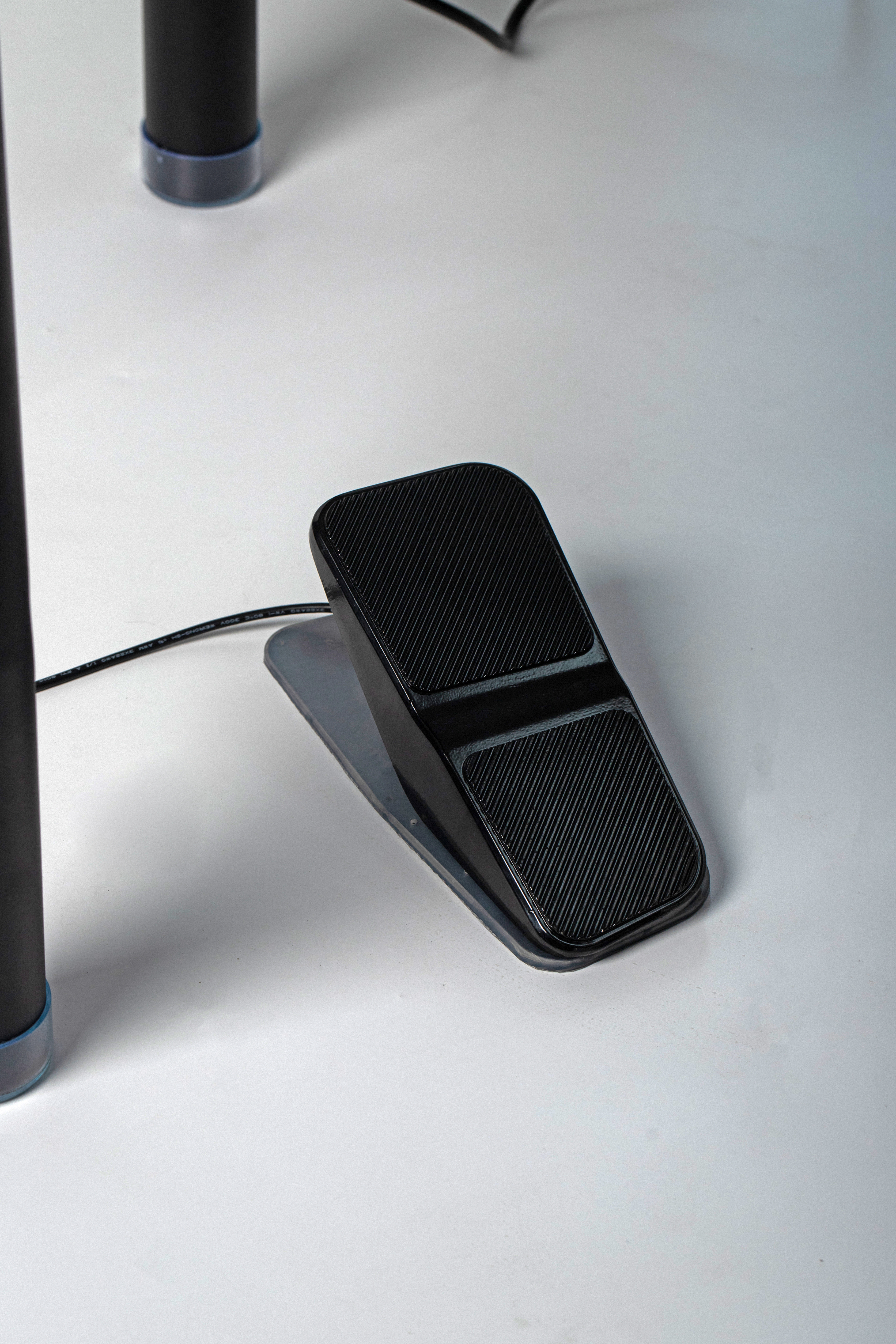

F) Advanced Foot Pedal
· Hall-effect technology for durability and minimal maintenance
G) One-Touch Reboot: Resolve minor issues instantly
*This product may be harmful to someone with a pacemaker. Serious injury or death could occur. Please consult a physician before use.
*The LVD low-voltage directive of the product has been tested in accordance with EN 62233:2008 "Measurement methods for human exposure to electromagnetic fields in household and similar electrical appliances" and EN60335-1-2012 "Safety standards for household and similar electrical appliances".
Taking pre-orders until June 13.
Estimated arrival: August 2026.
NZ local shipping available — shipping costs vary depending on location.
DIRECT DRIVE MOTOR
Introducing our new generation of ultra-quiet AC variable speed motors, designed to deliver powerful performance with minimal noise. Experience efficient operation and enhanced comfort in a whisper- quiet package
MAGNETIC SPLASH PAN
Our splash pan features a magnetic closure, that does not require excessive force.
• To attach the splash pan, simply position it on both sides of the wheel head.
• Ensure it is level with the table, then gently push the sides together
until you feel the secure pull of the magnetic closure engage
Technical Specifications
Parameter | Specification |
Model | Andromeda DD03 |
Rated Voltage | AC 230V |
Frequency | 50 Hz |
Maximum Output Horsepower | 1.18 hp |
Maximum Input Power | 1100 W |
Rated Power | 400 W |
Rotational Speed | 0–300 r/min |
Wheelhead Diameter | 352 mm with bat pins 250mm apart |
Maximum Load | 60 kg |
Wheelhead direction | CW/CCW |
Noise | ≤40 dB |
Dimensions | L 725 × W 640 × H 355–580 mm |
Net Weight | 37 kg |
Output Torque | 28 N.m |
Jingdezhen Baitaohui Ceramic Equipment Co.LTD (BTH) warrants to the original purchaser that the Sirius Pottery Wheel (Model ILP-BP02) is free from defects in materials and workmanship under normal use and service for a period of five years (5) from date of purchase. This warranty covers only the specific parts listed below and excludes all other components, accessories or consumables not explicitly mentioned.
Category | Covered Parts | Warranty Duration |
|---|---|---|
Electrical | Pottery Wheel Main Frame | 5 Years |
Electrical | Direct Motor | 5 Years |
Electrical | Power Switch | 5 Years |
Electrical | Controller | 5 Years |
Electrical | Inverse Switch | 5 Years |
Electrical | Power Cord | 5 Years |
Mechanical | Wheel Head | 5 Years |
Mechanical | Splash Pan | 5 Years |
Mechanical | Foot Pedal | 5 Years |
This warranty does not apply to:
Damage cause by misuse, abuse, accident, modification or unauthorised repair
Normal wear and tear (eg. Belt stretch, rubber foot caps, minor scratches)
Use with voltage outside the standard range (110v+-10%/230V +-10%/60/50hz) or without proper grounding
Failure to follow installation, operation, maintenance, or instructions in this manual
Damage from water ingress, clay build up or lack of cleaning
Shipping cost for sending defective units (customer responsibility)
Labor charges for removal, re-installation or onsite service
Exclusions from warranty coverage:
The following are not covered under any circumstances:
Shipping charges: All cost to send defective items to dealer or BTH
Labor Fees: Removal, re-installation, or modification from original state
Secondary Cost: Consequential losses, downtime or third party fees.
