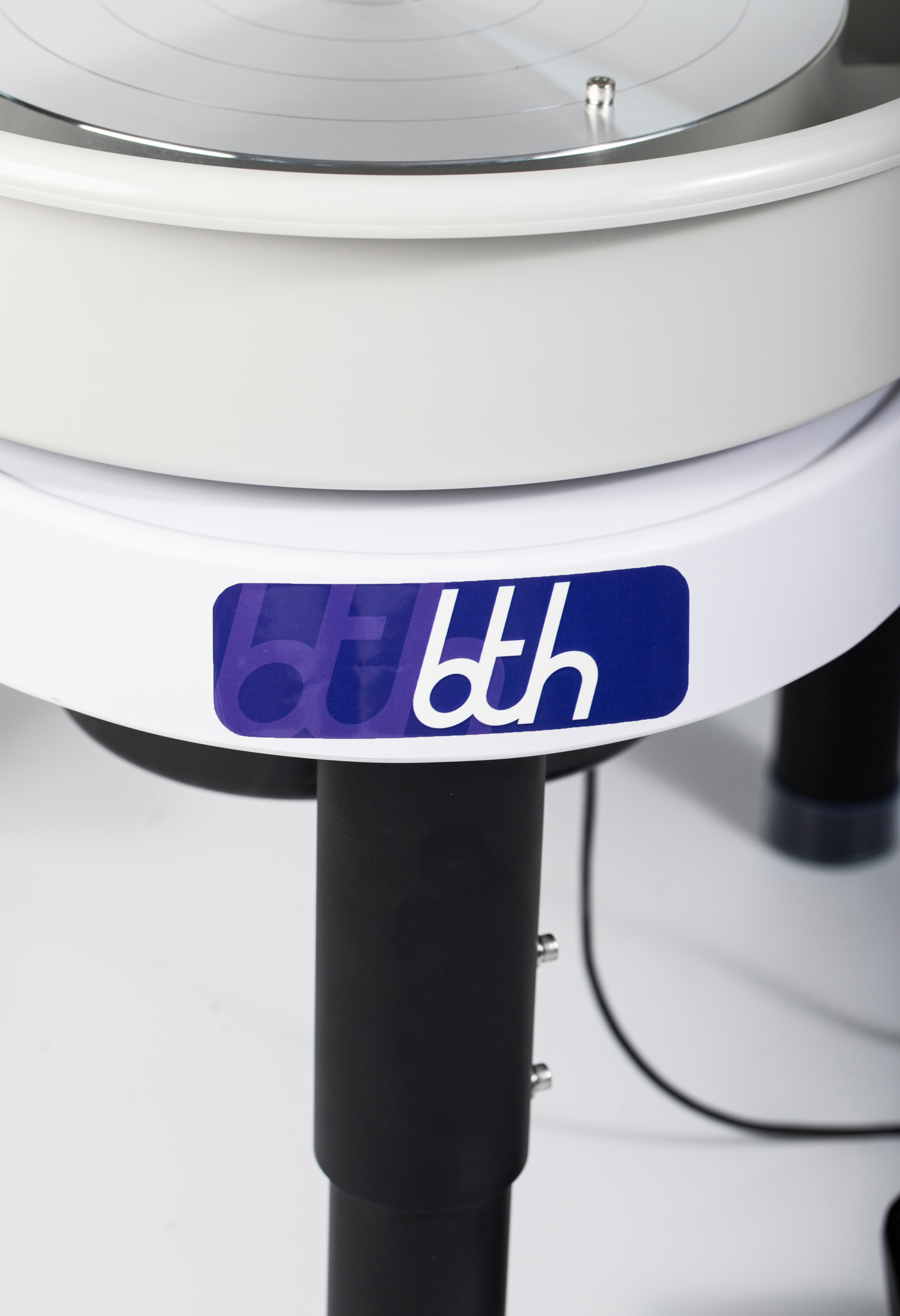

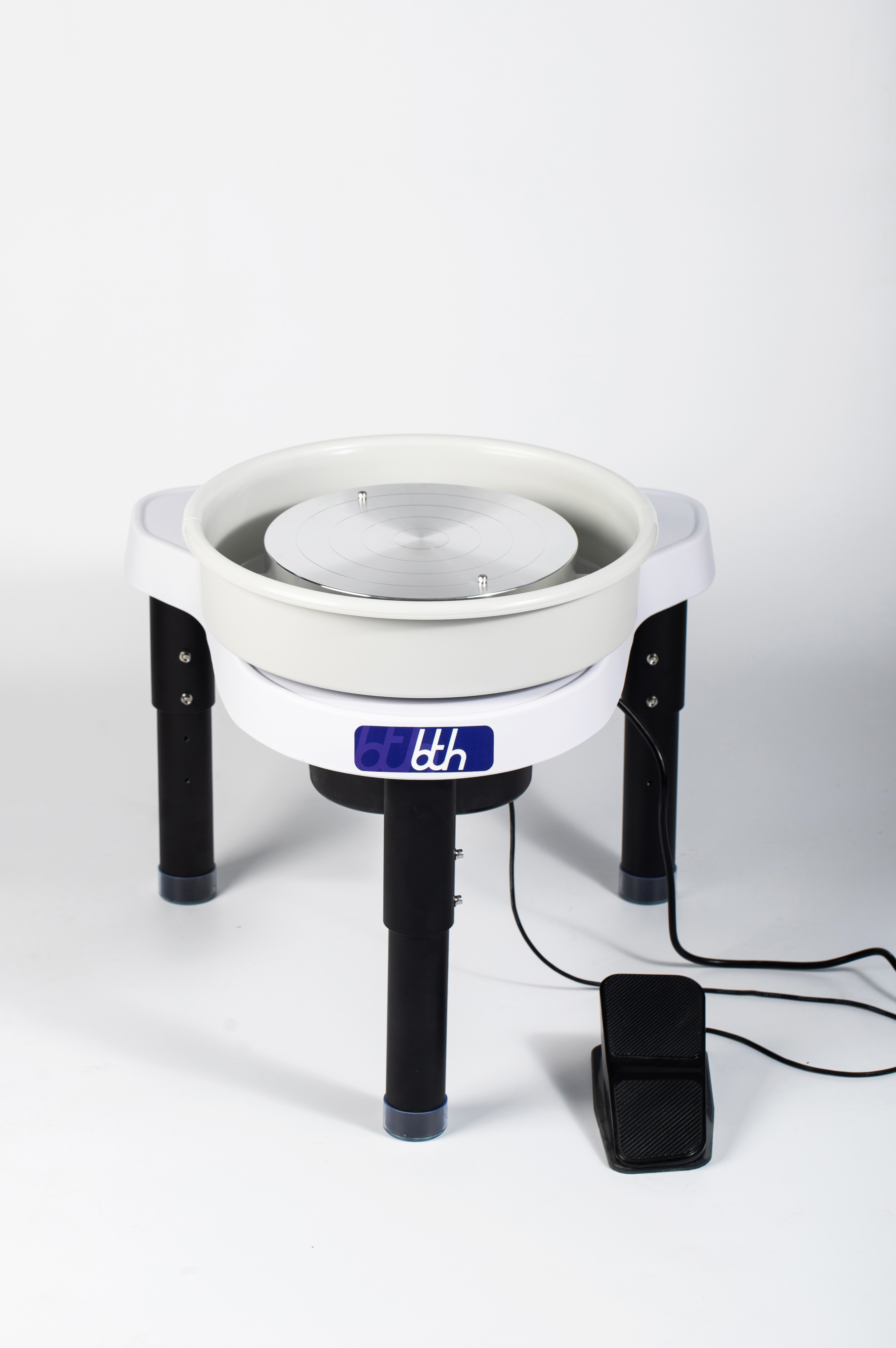

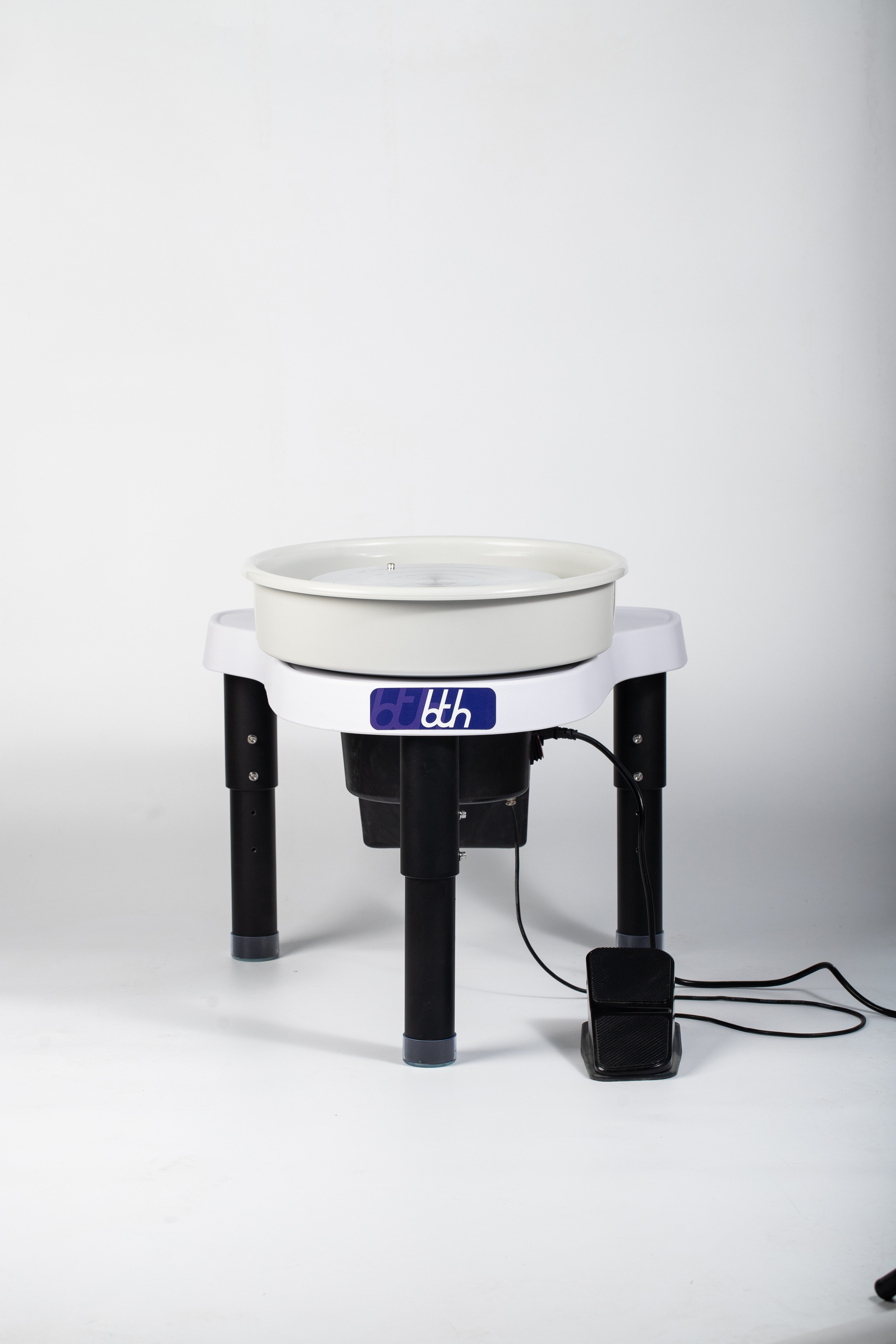

BTH Sirius Pottery Wheel
NZ$2075.00
Highlighted Performance
A) New-Generation AC Variable Frequency Motor
· Ultra-quiet operation
· Maintenance-free design, durable and long-lasting
B) Wide Speed Control Range
· Minimum speed: 5 RPM, Maximum speed: 300 RPM
C) Smooth Start-Stop
· Built-in delay function: soft start and smooth stop – prevents and reduces work deformation, and provides better control for large-scale pieces
D) High-Precision Performance
· Aluminum disc accuracy exceeds industry standards:
Upper plane runout ≤ 0.1 mm
Side runout ≤ 0.05 mm
· Ensures smoother, more precise shaping and trimming
E) Exclusive Magnetic Splash Pan
· Easy to remove and clean
F) Adjustable Legs
· Adjustable height for ergonomic comfort and optimal posture

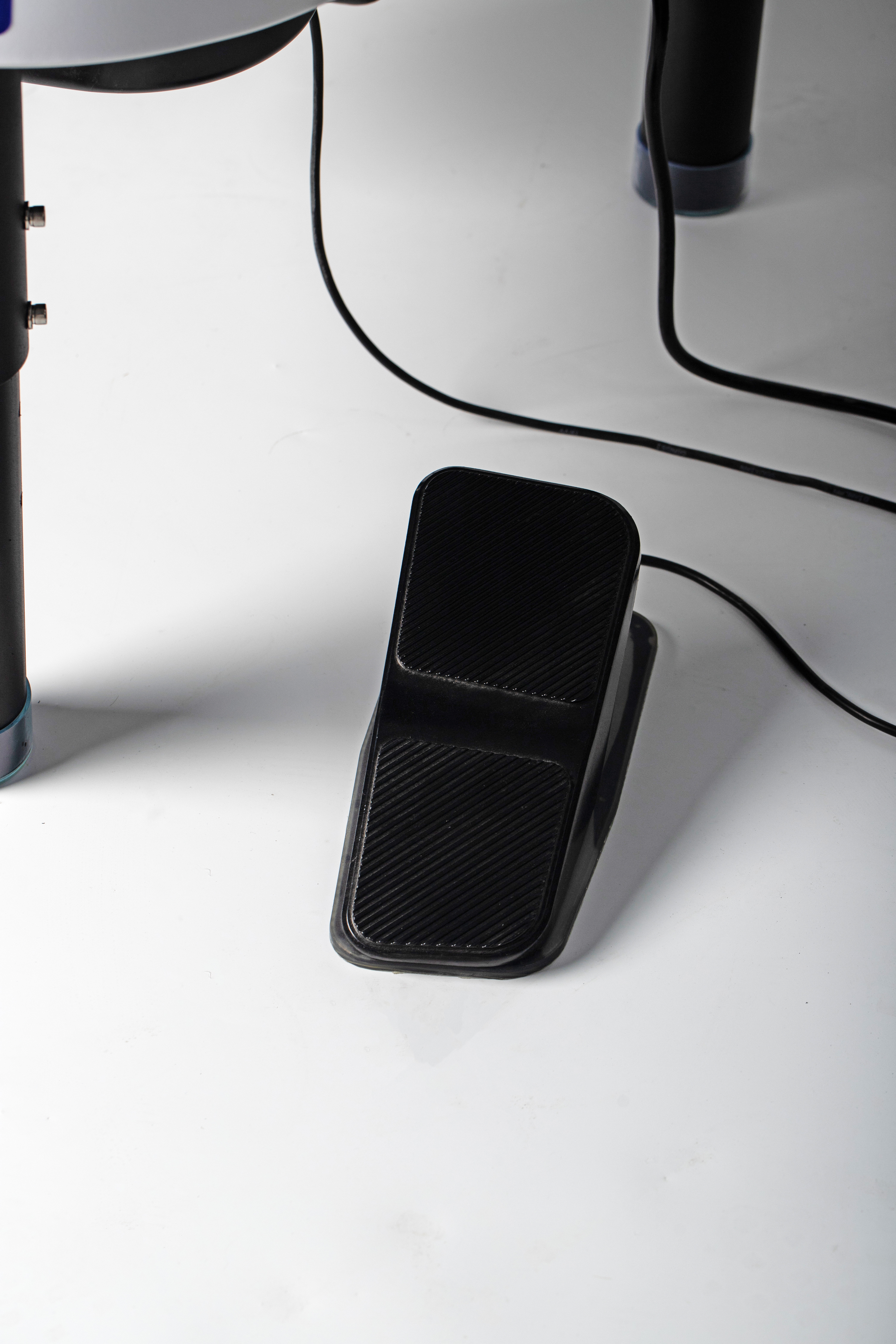

G) Advanced Foot Pedal
· Equipped with Hall-effect technology, durable and reliable with minimal maintenance required
Taking pre-orders until June 13.
Estimated arrival: August 2026.
NZ local shipping available — shipping costs vary depending on location.
Technical Specification
Parameter | Specification |
Model | Sirius BP02 |
Rated Voltage | AC 230V |
Frequency | 50 Hz |
Maximum Output Horsepower | 0.7 hp |
Maximum Input Power | 800 W |
Rated Power | 500 W |
Rotational Speed | 0–300 RPM |
Wheelhead Diameter | 315 mm with bat pins 250 mm apart |
Maximum Load | 40 kg |
Wheelhead Direction | CW / CCW |
Noise | ≤45 dB |
Dimensions (L×W×H) | L 680 × W 640 × H 480–580 mm |
Net Weight | 31 kg |
Maximum Torque | 20 N.m |
Jingdezhen Baitaohui Ceramic Equipment Co.LTD (BTH) warrants to the original purchaser that the Sirius Pottery Wheel (Model ILP-BP02) is free from defects in materials and workmanship under normal use and service for a period of five years (5) from date of purchase. This warranty covers only the specific parts listed below and excludes all other components, accessories or consumables not explicitly mentioned.
Category | Covered Parts | Warranty Duration |
|---|---|---|
Electrical | Pottery Wheel Main Frame | 5 Years |
Electrical | Direct Motor | 5 Years |
Electrical | Power Switch | 5 Years |
Electrical | Controller | 5 Years |
Electrical | Inverse Switch | 5 Years |
Electrical | Power Cord | 5 Years |
Mechanical | Wheel Head | 5 Years |
Mechanical | Splash Pan | 5 Years |
Mechanical | Foot Pedal | 5 Years |
This warranty does not apply to:
Damage cause by misuse, abuse, accident, modification or unauthorised repair
Normal wear and tear (eg. Belt stretch, rubber foot caps, minor scratches)
Use with voltage outside the standard range (110v+-10%/230V +-10%/60/50hz) or without proper grounding
Failure to follow installation, operation, maintenance, or instructions in this manual
Damage from water ingress, clay build up or lack of cleaning
Shipping cost for sending defective units (customer responsibility)
Labor charges for removal, re-installation or onsite service
Exclusions from warranty coverage:
The following are not covered under any circumstances:
Shipping charges: All cost to send defective items to dealer or BTH
Labor Fees: Removal, re-installation, or modification from original state
Secondary Cost: Consequential losses, downtime or third party fees.
